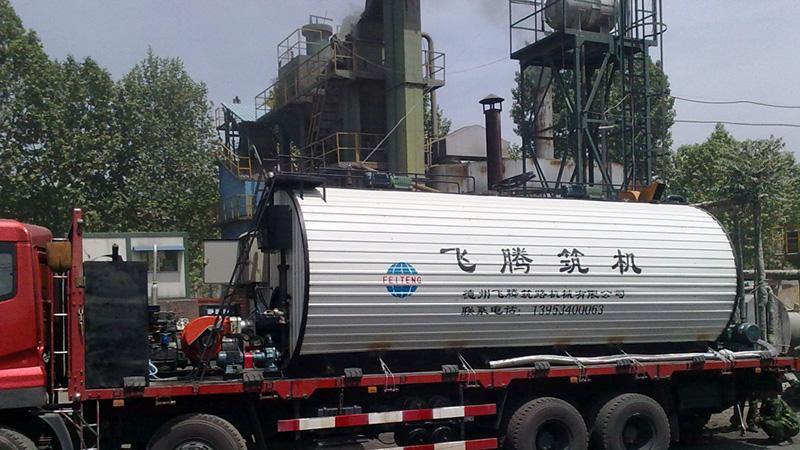

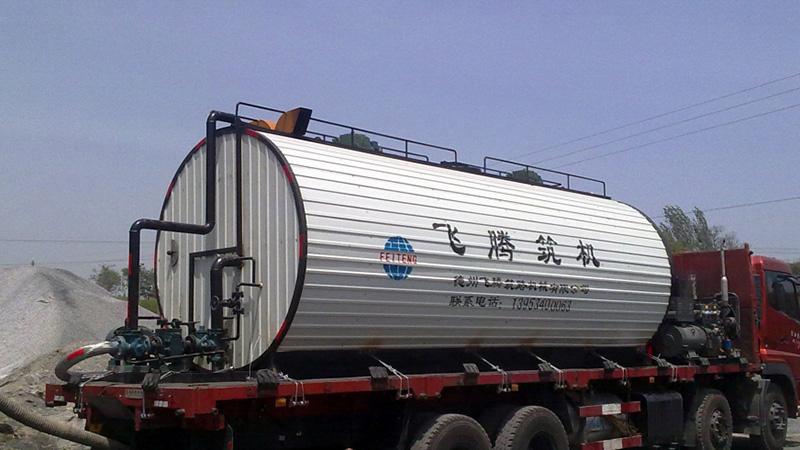

Bitumen tank trailer, also known as insulated tank trailer for carrying melted asphalt or bitumen, it has heating system used for remaining asphalt at liquid state during transportation.

Optimal configured bitumen tank trailer will be proposed to you according to actual needs of transportation distance and duration. What’s more, when your project requires an asphalt tanker to be mounted on asphalt distributor, we are capable to devise updated selections to meet your specific requirements on asphalt distribution operations.

Applicable substance: base asphalt, rubber asphalt, modified asphalt

Heating system: diesel burner

Asphalt transportation tank type: Round shaped horizontal tank, Square shaped horizontal tank

Technical parameters
Model CYZL-10 CYZL-20 CYZL-30 CYZL-40
Tank type Round shaped horizontal tank Round shaped horizontal tank Round shaped horizontal tank Square shaped horizontal tank
Fuel consumption per ton (kg) 8-10 8-10 10-12 10-12
Capacity (m³) 10 20 30 40
Power (kW) 11 11 12 12
Burner capacity (Kcal) 260.000 260.000 350.000 350.000
Size (m) Φ2.2×5.8 Φ2.2×8.3 Φ2.2×10.5 12×2.25×2.55 (L×W×H)

Custom options: for more options of tank types and sizes, please contact us for customization.

Features
  • Compatible large volume asphalt pump consumes less power, shortens asphalt loading time;
  • Generator set combined with automated electric control system, achieves automatic starting and stopping on heating asphalt by pre-setting temperature;
  • Agitator unit is equipped to prevent additives in modified asphalt and rubber asphalt from separating;
