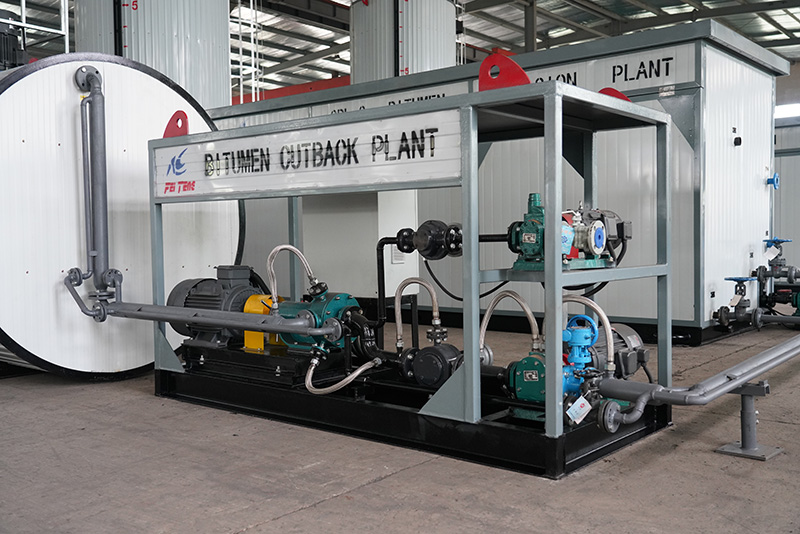

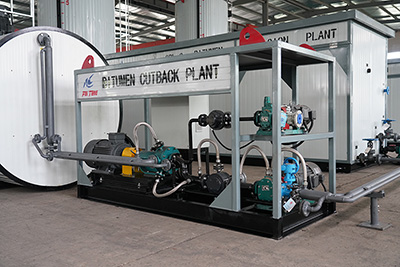

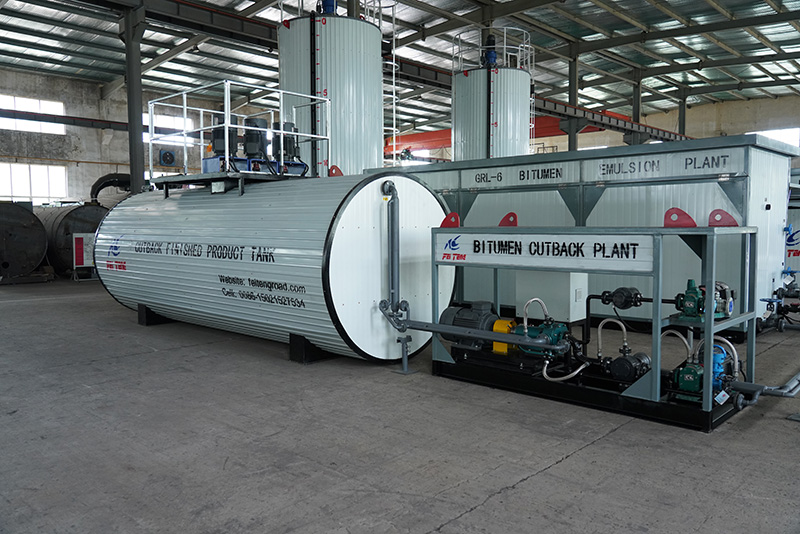

Cutback Bitumen Production Machine (Dissolving In Kerosene)
The cutback bitumen machine is a specialized industrial device that achieves the dilution process of asphalt by dissolving concentrated asphalt in kerosene. Cutback bitumen is suitable for various engineering fields such as road construction, parking lot repairs, bridge construction, and airport runway paving. The machine provides efficient and reliable solutions for the processing and application of asphalt materials.
Technical parameters
Function | Bitumen Cutback Production |
Production capacity | 5 t/h |
Grinding fineness | ≤5μm |
Bitumen content range | 20%-70% |
Paraffin pump flow | 3.3 m³/h |
Paraffin pump power | 1.5 kw |
Bitumen pump flow | 4 m³/h |
Bitumen pump power | 3 kw |
Dimension (L×W×H) | 2.6 m×1.1 m×1.5 m |
Total power | <26.5KW |
Voltage | 380V 50Hz AC power supply or customization |
Thermal oil temperature | 200℃-250℃ |
Temperature range | -200℃-450℃ |
Features
- Efficient dilution: Using kerosene as a solvent and advanced mixing technology allows for efficient and uniform mixing of bitumen with kerosene to effectively dilute the bitumen.
- Adjustable dilution ratio: The equipment is designed to be flexible and the dilution ratio is adjustable according to project requirements to meet the different asphalt characteristics required by different construction projects.
- Intelligent control system: The intelligent control system monitors key parameters such as temperature and flow rate to achieve precise control and improve operational convenience.
- Corrosion-resistant: The equipment is made of corrosion-resistant materials to ensure stability and durability when handling kerosene and asphalt.
- Environmentally friendly and energy saving: Using kerosene as a solvent offers lower environmental impact, meets environmental standards, and is a relatively energy-saving and eco-friendly dilution process.
- Safe and reliable: The equipment is equipped with multiple safety protection measures, including emergency shutdown devices and temperature monitoring systems, to ensure safe and reliable operation.
