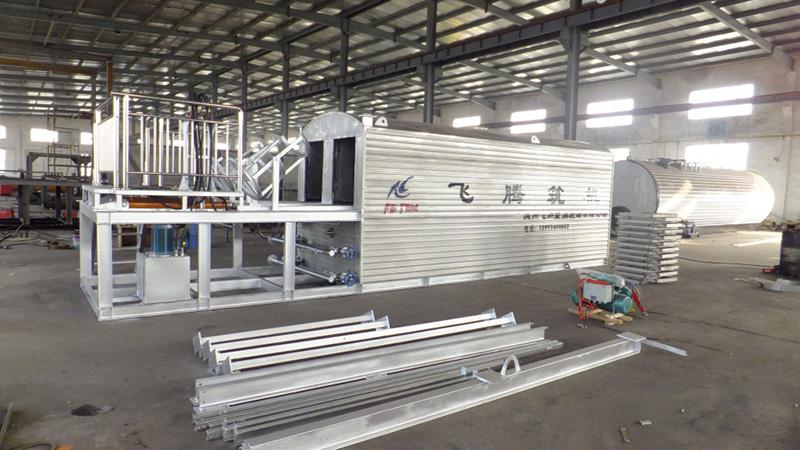

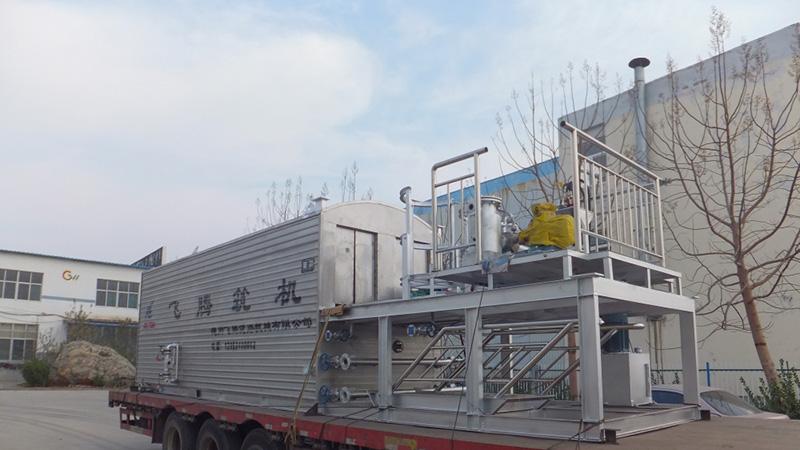

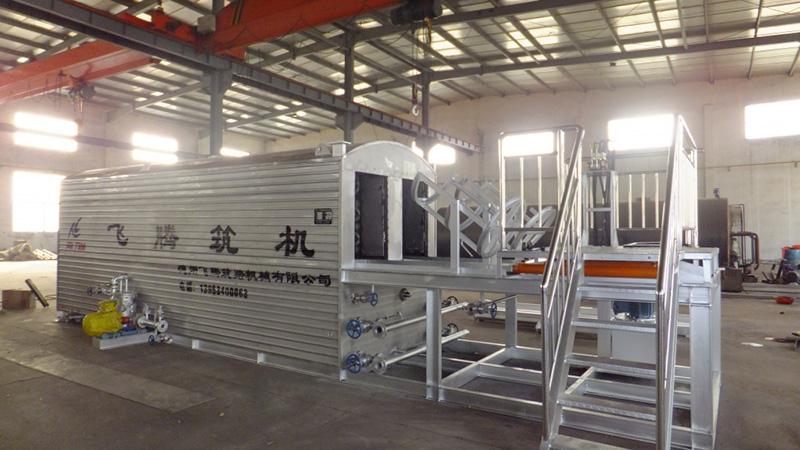

This heating and melting equipment is specifically designed for melting asphalt-like corrosive solid materials into liquid form. This corrosive material melter can be applied for melting various hazardous waste materials and chemical material which carriescorrosiveeffect, such as DMF rectification residues.

The melting equipment uses additional boiler as a heat source, through heating thermal oil or steam, corrosive material packed in drums can be easily melted.

Technical Parameters
Model FT-3 FT-5 FT-10 FT-15
Production capacity (t/h) 3-4 4-6 8-10 10-15
Tank capacity (m3) 8 10 15 20
Drum quantity 14 18 28 42
Number of drum rails 2 2 2 3
Dimension (L x W x H) (m) 7.9×2.2×2.55 9.1×2.2×2.55 12×2.2×2.55 12×2.8×2.55
Total power (kW) 15 15 17 17
Thermal oil heater capacity (Kcal/hr) 400,000 400,000 600,000 800,000
Features
  • All parts of melting equipment in contact with materials are made of stainless steel, so this melting equipment is suitable for heating and melting corrosivematerials.
  • The design of arc shaped top helps to collect volatile gases, ensuring environmental protection.
  • Other auxiliary units like pumps, filters and pipe valves are also made of stainless steel, offering better anticorrosive performance.
